使用frps和frpc实现内网穿透

使用frps和frpc工具可以实现内网穿透,以便允许主机A通过公网IP访问局域网内的主机C。
首先,在具有公网IP的主机B上配置frps服务端,然后在主机C上配置frpc客户端。
通过这种方式,主机C作为反向代理,主机B作为正向代理,使得主机A能够通过特定端口与主机C建立SSH和RDP连接。

内网穿透的作用:
跨网段访问一个局域网中的一台主机。

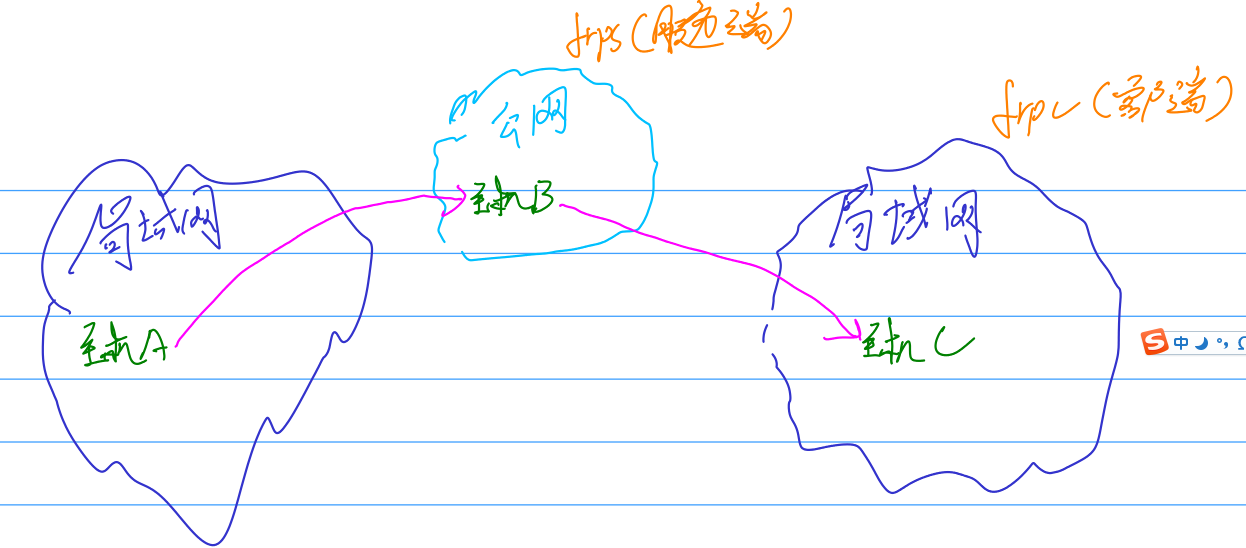

如上图,假设我们想要通过主机A访问主机C,但是主机A和主机C绑定的都是私有ip地址,所以它们之间是无法直接进行通信的。
要想使得A和C能够进行通信,就需要用到内网穿透的技术。
我们可以借助frps(服务端)和frpc(客户端)来实现主机A对主机C的访问。

需要做的是:
1.在绑定了公网ip的主机B中配置frps(服务端)
2.在主机C中配置frpc(客户端)

frps/frpc的工具包的github地址是:
https://github.com/fatedier/frp/releases/

在服务端,即主机B中,编辑frps.toml文件:

bindPort = 16443
kcpBindPort = 16443
webServer.port = 7101
webServer.user = “aaauser”
webServer.password = “aaapassw”
dashboardPwd = “dasspw”
vhostHTTPPort = 19080
vhostHTTPSPort = 19443
log.file = “/var/log/frps.log”
log.level = “info”
log.maxDays = 30
auth.token = “UGKMW3v4CKK0TaM9”
maxPoolCount = 50
tcpmuxHTTPConnectPort = 17337

然后可以启动服务端,切换到frps软件的解压目录之后,使用命令:
./frps -c frps.toml

在客户端,即主机C中,编辑frpc.toml文件:

serverAddr = “66.59.186.119”
serverPort = 16443
auth.method = ‘token’
auth.token = ‘UGKMW3v4CKK0TaM9’

[[proxies]]
name = “yuancheng”
type = “tcp”
localip = “127.0.0.1”
localport = 3389
remoteport = 6001

[[proxies]]
name = “web1”
type = “http”
localIP = “127.0.0.1”
localPort = 80
customDomains = [“zhangsan.abc.com”]

[[proxies]]
name = “web2”
type = “http”
localIP = “127.0.0.1”
localPort = 80
customDomains = [“66.59.186.119”]

其中zhangsan.abc.com需要提前解析到66.59.186.119这个IP上
另外里面的remoteport 需要是服务端的B主机上空闲的端口

客户端会根据frpc.toml文件中配置的serveraddr的ip以及serverport 与 服务端监听的16443端口进行连接
客户端使用命令连接到服务端:
./frpc -c frpc.toml

这里主机C(客户端)相当于是充当了反向代理的角色,而主机B(服务端)充当了正向代理的角色。
正向代理是代理客户端,为客户端收发请求,使真实客户端对服务器不可见;
而反向代理是代理服务器端,为服务器收发请求,使真实服务器对客户端不可见。
因此,主机B用来接收主机A发送过来的请求,然后主机B将请求转发给主机C,从而主机A和主机C就能够进行通信了。

通过上面的设置,就可以通过66.59.186.119:6001连接主机C的远程桌面
通过http://zhangsan.abc.com:19080访问主机C的80端口
还可以通过http://66.59.186.119:19080访问主机C的80端口

我测试了一下, frpc.toml中加入如下内容

[[proxies]]
name = "http_proxy"
type = "tcp"
remotePort = 6030
[proxies.plugin]
type = "http_proxy"
httpUser = "abc"
httpPassword = "abc"


[[proxies]]
name = "socks5_proxy"
type = "tcp"
remotePort = 6080
[proxies.plugin]
type = "socks5"
username= "abc"
password= "abc"

使用frpc -c frpc.toml启动frpc,可以启动成功,但是使用HTTP或socks5代理的时候,没有达到预期效果。

从网上找到的conf/frpc_full_example.toml的全部代码:


# This configuration file is for reference only. Please do not use this configuration directly to run the program as it may have various issues.

# your proxy name will be changed to {user}.{proxy}
user = "your_name"

# A literal address or host name for IPv6 must be enclosed
# in square brackets, as in "[::1]:80", "[ipv6-host]:http" or "[ipv6-host%zone]:80"
# For single serverAddr field, no need square brackets, like serverAddr = "::".
serverAddr = "0.0.0.0"
serverPort = 7000

# STUN server to help penetrate NAT hole.
# natHoleStunServer = "stun.easyvoip.com:3478"

# Decide if exit program when first login failed, otherwise continuous relogin to frps
# default is true
loginFailExit = true

# console or real logFile path like ./frpc.log
log.to = "./frpc.log"
# trace, debug, info, warn, error
log.level = "info"
log.maxDays = 3
# disable log colors when log.to is console, default is false
log.disablePrintColor = false

auth.method = "token"
# auth.additionalScopes specifies additional scopes to include authentication information.
# Optional values are HeartBeats, NewWorkConns.
# auth.additionalScopes = ["HeartBeats", "NewWorkConns"]

# auth token
auth.token = "12345678"

# oidc.clientID specifies the client ID to use to get a token in OIDC authentication.
# auth.oidc.clientID = ""
# oidc.clientSecret specifies the client secret to use to get a token in OIDC authentication.
# auth.oidc.clientSecret = ""
# oidc.audience specifies the audience of the token in OIDC authentication.
# auth.oidc.audience = ""
# oidc.scope specifies the permisssions of the token in OIDC authentication if AuthenticationMethod == "oidc". By default, this value is "".
# auth.oidc.scope = ""
# oidc.tokenEndpointURL specifies the URL which implements OIDC Token Endpoint.
# It will be used to get an OIDC token.
# auth.oidc.tokenEndpointURL = ""

# oidc.additionalEndpointParams specifies additional parameters to be sent to the OIDC Token Endpoint.
# For example, if you want to specify the "audience" parameter, you can set as follow.
# frp will add "audience=<value>" "var1=<value>" to the additional parameters.
# auth.oidc.additionalEndpointParams.audience = "https://dev.auth.com/api/v2/"
# auth.oidc.additionalEndpointParams.var1 = "foobar"

# Set admin address for control frpc's action by http api such as reload
webServer.addr = "127.0.0.1"
webServer.port = 7400
webServer.user = "admin"
webServer.password = "admin"
# Admin assets directory. By default, these assets are bundled with frpc.
# webServer.assetsDir = "./static"

# Enable golang pprof handlers in admin listener.
webServer.pprofEnable = false

# The maximum amount of time a dial to server will wait for a connect to complete. Default value is 10 seconds.
# transport.dialServerTimeout = 10

# dialServerKeepalive specifies the interval between keep-alive probes for an active network connection between frpc and frps.
# If negative, keep-alive probes are disabled.
# transport.dialServerKeepalive = 7200

# connections will be established in advance, default value is zero
transport.poolCount = 5

# If tcp stream multiplexing is used, default is true, it must be same with frps
# transport.tcpMux = true

# Specify keep alive interval for tcp mux.
# only valid if tcpMux is enabled.
# transport.tcpMuxKeepaliveInterval = 60

# Communication protocol used to connect to server
# supports tcp, kcp, quic, websocket and wss now, default is tcp
transport.protocol = "tcp"

# set client binding ip when connect server, default is empty.
# only when protocol = tcp or websocket, the value will be used.
transport.connectServerLocalIP = "0.0.0.0"

# if you want to connect frps by http proxy or socks5 proxy or ntlm proxy, you can set proxyURL here or in global environment variables
# it only works when protocol is tcp
# transport.proxyURL = "http://user:passwd@192.168.1.128:8080"
# transport.proxyURL = "socks5://user:passwd@192.168.1.128:1080"
# transport.proxyURL = "ntlm://user:passwd@192.168.1.128:2080"

# quic protocol options
# transport.quic.keepalivePeriod = 10
# transport.quic.maxIdleTimeout = 30
# transport.quic.maxIncomingStreams = 100000

# If tls.enable is true, frpc will connect frps by tls.
# Since v0.50.0, the default value has been changed to true, and tls is enabled by default.
transport.tls.enable = true

# transport.tls.certFile = "client.crt"
# transport.tls.keyFile = "client.key"
# transport.tls.trustedCaFile = "ca.crt"
# transport.tls.serverName = "example.com"

# If the disableCustomTLSFirstByte is set to false, frpc will establish a connection with frps using the
# first custom byte when tls is enabled.
# Since v0.50.0, the default value has been changed to true, and the first custom byte is disabled by default.
# transport.tls.disableCustomTLSFirstByte = true

# Heartbeat configure, it's not recommended to modify the default value.
# The default value of heartbeatInterval is 10 and heartbeatTimeout is 90. Set negative value
# to disable it.
# transport.heartbeatInterval = 30
# transport.heartbeatTimeout = 90

# Specify a dns server, so frpc will use this instead of default one
# dnsServer = "8.8.8.8"

# Proxy names you want to start.
# Default is empty, means all proxies.
# start = ["ssh", "dns"]

# Specify udp packet size, unit is byte. If not set, the default value is 1500.
# This parameter should be same between client and server.
# It affects the udp and sudp proxy.
udpPacketSize = 1500

# Additional metadatas for client.
metadatas.var1 = "abc"
metadatas.var2 = "123"

# Include other config files for proxies.
# includes = ["./confd/*.ini"]

[[proxies]]
# 'ssh' is the unique proxy name
# If global user is not empty, it will be changed to {user}.{proxy} such as 'your_name.ssh'
name = "ssh"
type = "tcp"
localIP = "127.0.0.1"
localPort = 22
# Limit bandwidth for this proxy, unit is KB and MB
transport.bandwidthLimit = "1MB"
# Where to limit bandwidth, can be 'client' or 'server', default is 'client'
transport.bandwidthLimitMode = "client"
# If true, traffic of this proxy will be encrypted, default is false
transport.useEncryption = false
# If true, traffic will be compressed
transport.useCompression = false
# Remote port listen by frps
remotePort = 6001
# frps will load balancing connections for proxies in same group
loadBalancer.group = "test_group"
# group should have same group key
loadBalancer.groupKey = "123456"
# Enable health check for the backend service, it supports 'tcp' and 'http' now.
# frpc will connect local service's port to detect it's healthy status
healthCheck.type = "tcp"
# Health check connection timeout
healthCheck.timeoutSeconds = 3
# If continuous failed in 3 times, the proxy will be removed from frps
healthCheck.maxFailed = 3
# every 10 seconds will do a health check
healthCheck.intervalSeconds = 10
# additional meta info for each proxy
metadatas.var1 = "abc"
metadatas.var2 = "123"

[[proxies]]
name = "ssh_random"
type = "tcp"
localIP = "192.168.31.100"
localPort = 22
# If remotePort is 0, frps will assign a random port for you
remotePort = 0

[[proxies]]
name = "dns"
type = "udp"
localIP = "114.114.114.114"
localPort = 53
remotePort = 6002

# Resolve your domain names to [serverAddr] so you can use http://web01.yourdomain.com to browse web01 and http://web02.yourdomain.com to browse web02
[[proxies]]
name = "web01"
type = "http"
localIP = "127.0.0.1"
localPort = 80
# http username and password are safety certification for http protocol
# if not set, you can access this customDomains without certification
httpUser = "admin"
httpPassword = "admin"
# if domain for frps is frps.com, then you can access [web01] proxy by URL http://web01.frps.com
subdomain = "web01"
customDomains = ["web01.yourdomain.com"]
# locations is only available for http type
locations = ["/", "/pic"]
# route requests to this service if http basic auto user is abc
# routeByHTTPUser = abc
hostHeaderRewrite = "example.com"
requestHeaders.set.x-from-where = "frp"
healthCheck.type = "http"
# frpc will send a GET http request '/status' to local http service
# http service is alive when it return 2xx http response code
healthCheck.path = "/status"
healthCheck.intervalSeconds = 10
healthCheck.maxFailed = 3
healthCheck.timeoutSeconds = 3

[[proxies]]
name = "web02"
type = "https"
localIP = "127.0.0.1"
localPort = 8000
subdomain = "web02"
customDomains = ["web02.yourdomain.com"]
# if not empty, frpc will use proxy protocol to transfer connection info to your local service
# v1 or v2 or empty
transport.proxyProtocolVersion = "v2"

[[proxies]]
name = "tcpmuxhttpconnect"
type = "tcpmux"
multiplexer = "httpconnect"
localIP = "127.0.0.1"
localPort = 10701
customDomains = ["tunnel1"]
# routeByHTTPUser = "user1"

[[proxies]]
name = "plugin_unix_domain_socket"
type = "tcp"
remotePort = 6003
# if plugin is defined, localIP and localPort is useless
# plugin will handle connections got from frps
[proxies.plugin]
type = "unix_domain_socket"
unixPath = "/var/run/docker.sock"

[[proxies]]
name = "plugin_http_proxy"
type = "tcp"
remotePort = 6004
[proxies.plugin]
type = "http_proxy"
httpUser = "abc"
httpPassword = "abc"

[[proxies]]
name = "plugin_socks5"
type = "tcp"
remotePort = 6005
[proxies.plugin]
type = "socks5"
username = "abc"
password = "abc"

[[proxies]]
name = "plugin_static_file"
type = "tcp"
remotePort = 6006
[proxies.plugin]
type = "static_file"
localPath = "/var/www/blog"
stripPrefix = "static"
httpUser = "abc"
httpPassword = "abc"

[[proxies]]
name = "plugin_https2http"
type = "https"
customDomains = ["test.yourdomain.com"]
[proxies.plugin]
type = "https2http"
localAddr = "127.0.0.1:80"
crtPath = "./server.crt"
keyPath = "./server.key"
hostHeaderRewrite = "127.0.0.1"
requestHeaders.set.x-from-where = "frp"

[[proxies]]
name = "plugin_https2https"
type = "https"
customDomains = ["test.yourdomain.com"]
[proxies.plugin]
type = "https2https"
localAddr = "127.0.0.1:443"
crtPath = "./server.crt"
keyPath = "./server.key"
hostHeaderRewrite = "127.0.0.1"
requestHeaders.set.x-from-where = "frp"

[[proxies]]
name = "plugin_http2https"
type = "http"
customDomains = ["test.yourdomain.com"]
[proxies.plugin]
type = "http2https"
localAddr = "127.0.0.1:443"
hostHeaderRewrite = "127.0.0.1"
requestHeaders.set.x-from-where = "frp"

[[proxies]]
name = "secret_tcp"
# If the type is secret tcp, remotePort is useless
# Who want to connect local port should deploy another frpc with stcp proxy and role is visitor
type = "stcp"
# secretKey is used for authentication for visitors
secretKey = "abcdefg"
localIP = "127.0.0.1"
localPort = 22
# If not empty, only visitors from specified users can connect.
# Otherwise, visitors from same user can connect. '*' means allow all users.
allowUsers = ["*"]

[[proxies]]
name = "p2p_tcp"
type = "xtcp"
secretKey = "abcdefg"
localIP = "127.0.0.1"
localPort = 22
# If not empty, only visitors from specified users can connect.
# Otherwise, visitors from same user can connect. '*' means allow all users.
allowUsers = ["user1", "user2"]

# frpc role visitor -> frps -> frpc role server
[[visitors]]
name = "secret_tcp_visitor"
type = "stcp"
# the server name you want to visitor
serverName = "secret_tcp"
secretKey = "abcdefg"
# connect this address to visitor stcp server
bindAddr = "127.0.0.1"
# bindPort can be less than 0, it means don't bind to the port and only receive connections redirected from
# other visitors. (This is not supported for SUDP now)
bindPort = 9000

[[visitors]]
name = "p2p_tcp_visitor"
type = "xtcp"
# if the server user is not set, it defaults to the current user
serverUser = "user1"
serverName = "p2p_tcp"
secretKey = "abcdefg"
bindAddr = "127.0.0.1"
# bindPort can be less than 0, it means don't bind to the port and only receive connections redirected from
# other visitors. (This is not supported for SUDP now)
bindPort = 9001
# when automatic tunnel persistence is required, set it to true
keepTunnelOpen = false
# effective when keepTunnelOpen is set to true, the number of attempts to punch through per hour
maxRetriesAnHour = 8
minRetryInterval = 90
# fallbackTo = "stcp_visitor"
# fallbackTimeoutMs = 500
